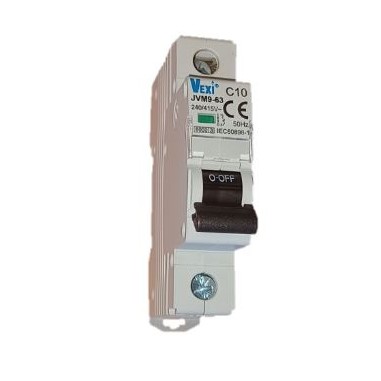

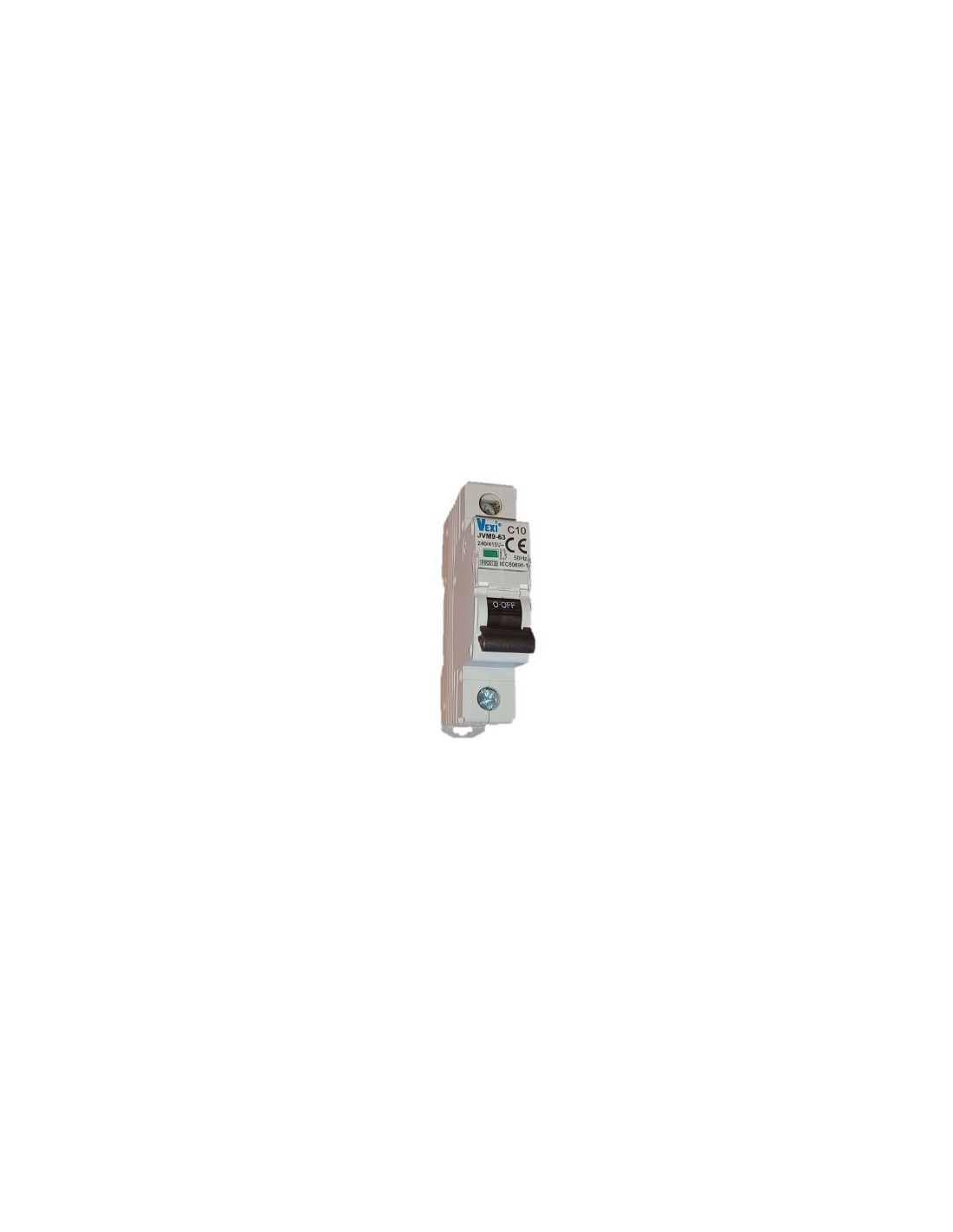

copy of Magnetotérmico Bipolar JVM9

Range of automatic 6KA cutting power switches.

It consists of 1-pole (unipolar) and intensities of 1 to 63 amp.

Protection against overloads and short circuits.

For use in applications of the residential and tertiary and industrial sector.

Employment tension; 230/415 VAC, 50/60 Hz.

Shooting curve: C.

Cutting power: 6 ka.

Energy limitation class: 3.

Degree of protection IP20.

Use temperature: -5ºC / 40ºC.

For mounting on DIN rail

Weight: 0.2 kg

Connection of cables up to 25 mm in diameter.

Possibility of interconnected using PIN type combs.

Standards: EN / IEC 60898-1.

Certificate: EC.

Supports accessories (auxiliary contacts, shooting coils and envelope limiter and sub-tension).
