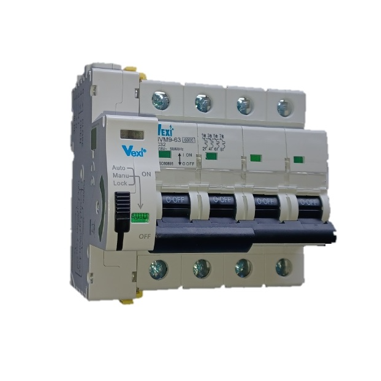

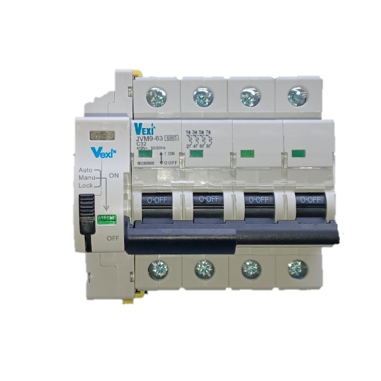

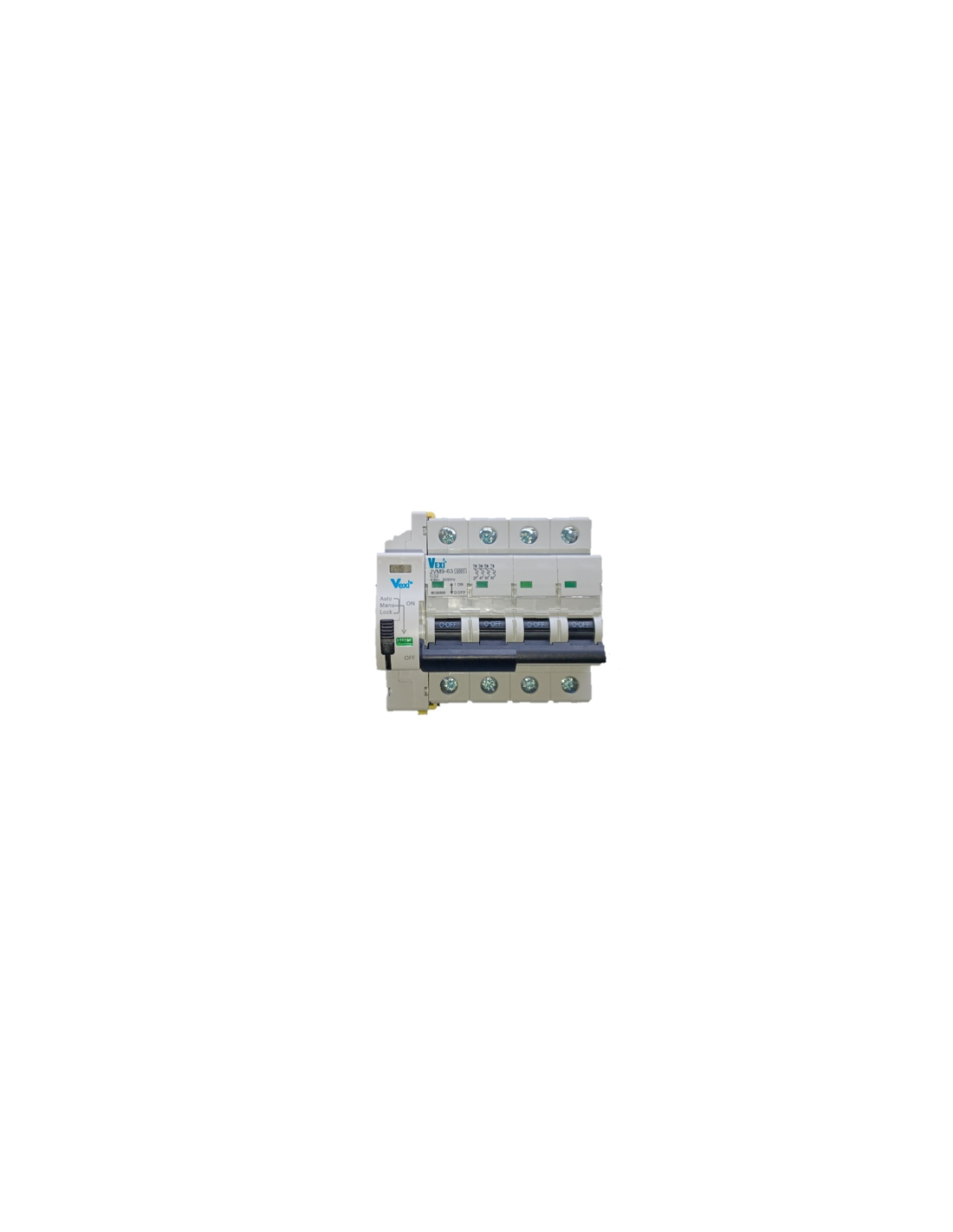

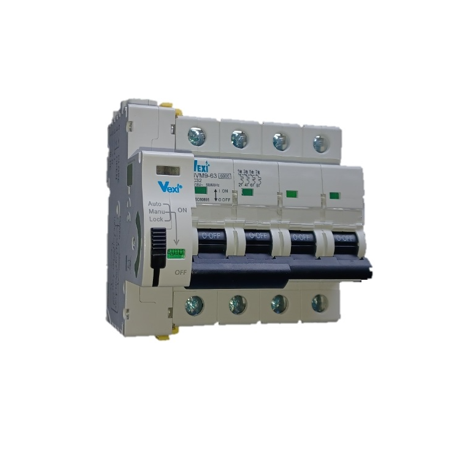

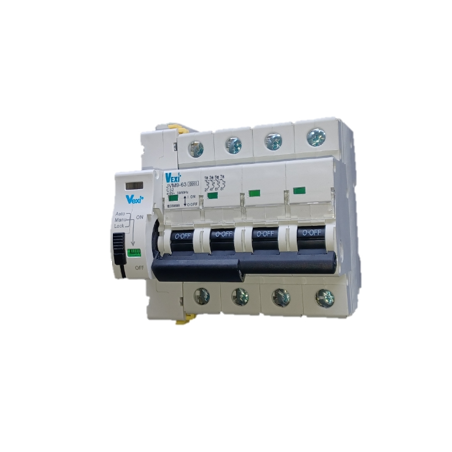

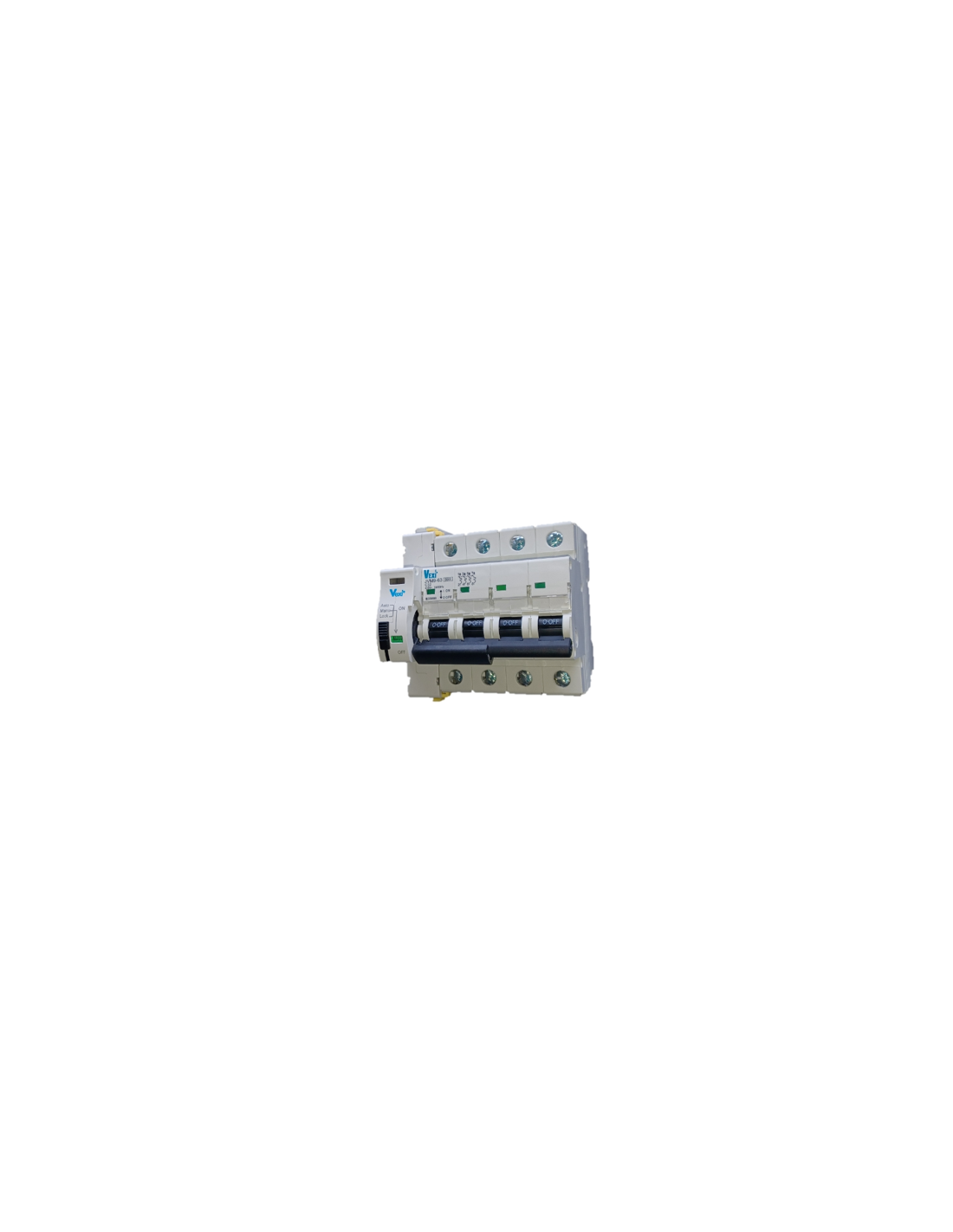

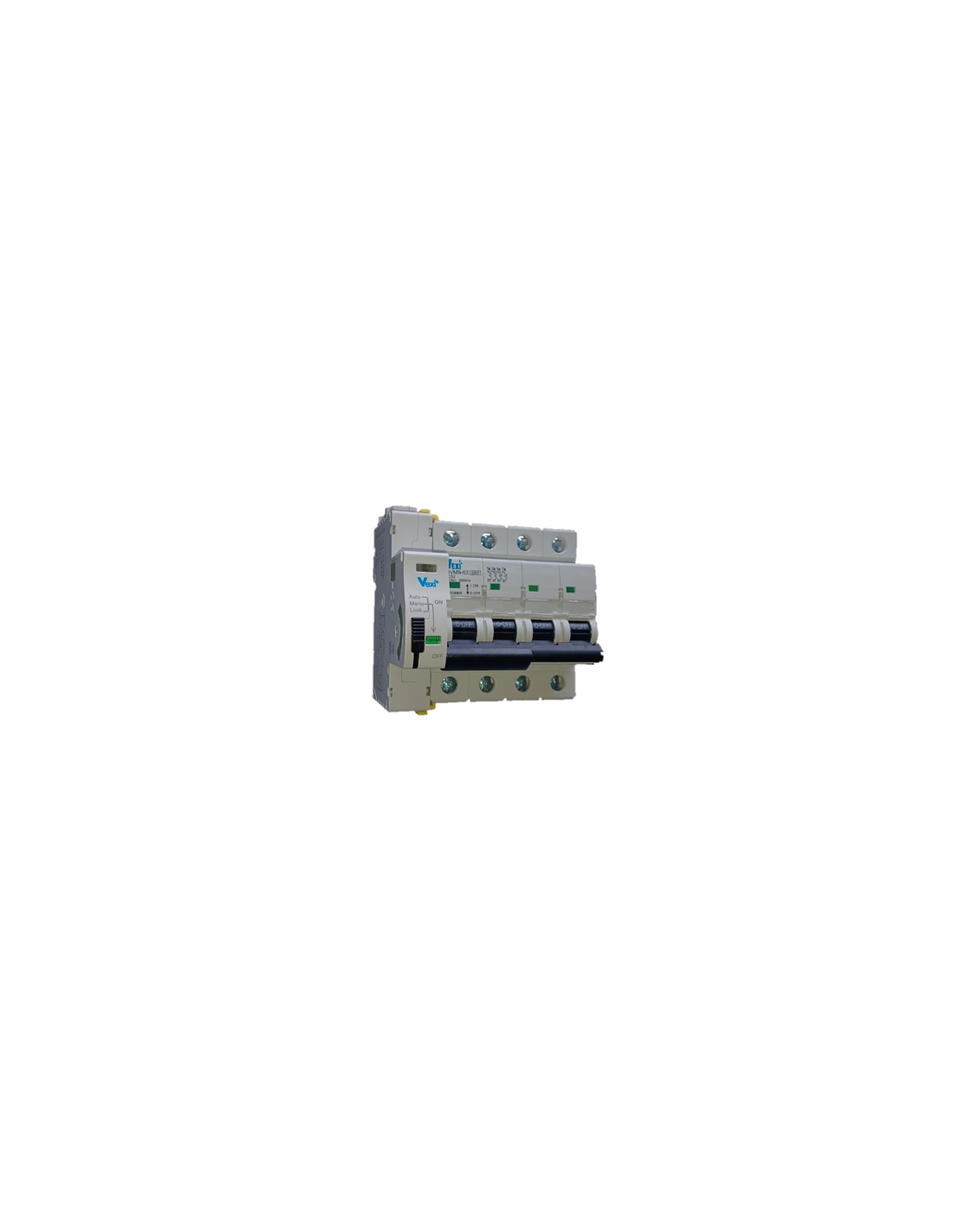

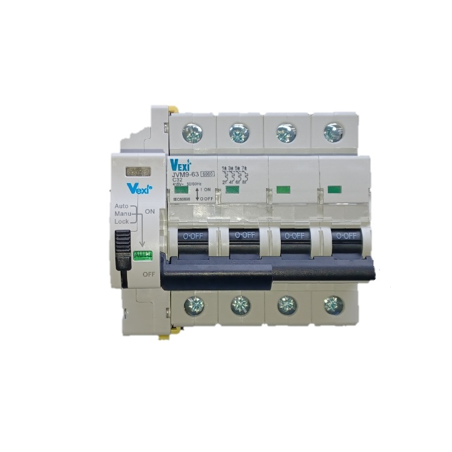

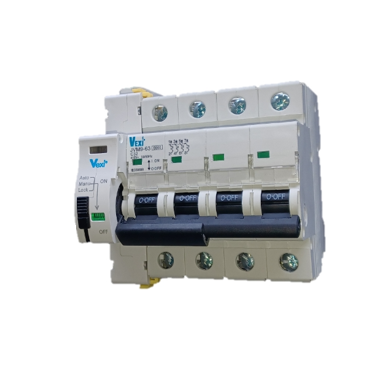

Three-phase magnetothermal with fixed or programmable rear
Range of automatic 6ka remarkable switches of cutting power.
It consists of 4-poles (three-phase) magnetothermal switches and intensities from 1 to 63 amps.
Protection against overloads and short circuits.
For use in applications of the residential and tertiary and industrial sector.
For mounting on DIN rail
Connection of cables up to 25 mm in diameter.
Possibility of rearcing fixed (3 reconnections at 10 SG., 60 SG., And 5 minutes.). If after these 3 reconnections, the differential does not rearm, no longer rearmplate.
Possibility of programmable reset (9 programmable reconnections and 9 programmable times), programmable reconnect times are: 0, 10, 20.30, 45, 60, 90, 120, 150 and 180 SG. As in the previous case, if after the programmed reconnections, the differential does not rearm, no longer rearmplate.
Dimensions: 5 modules of 18 mm (for fixed reconnection).
6 18 mm modules (for automatic reconnection).
Degree of protection: IP20
