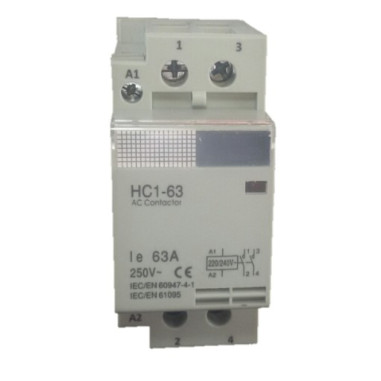

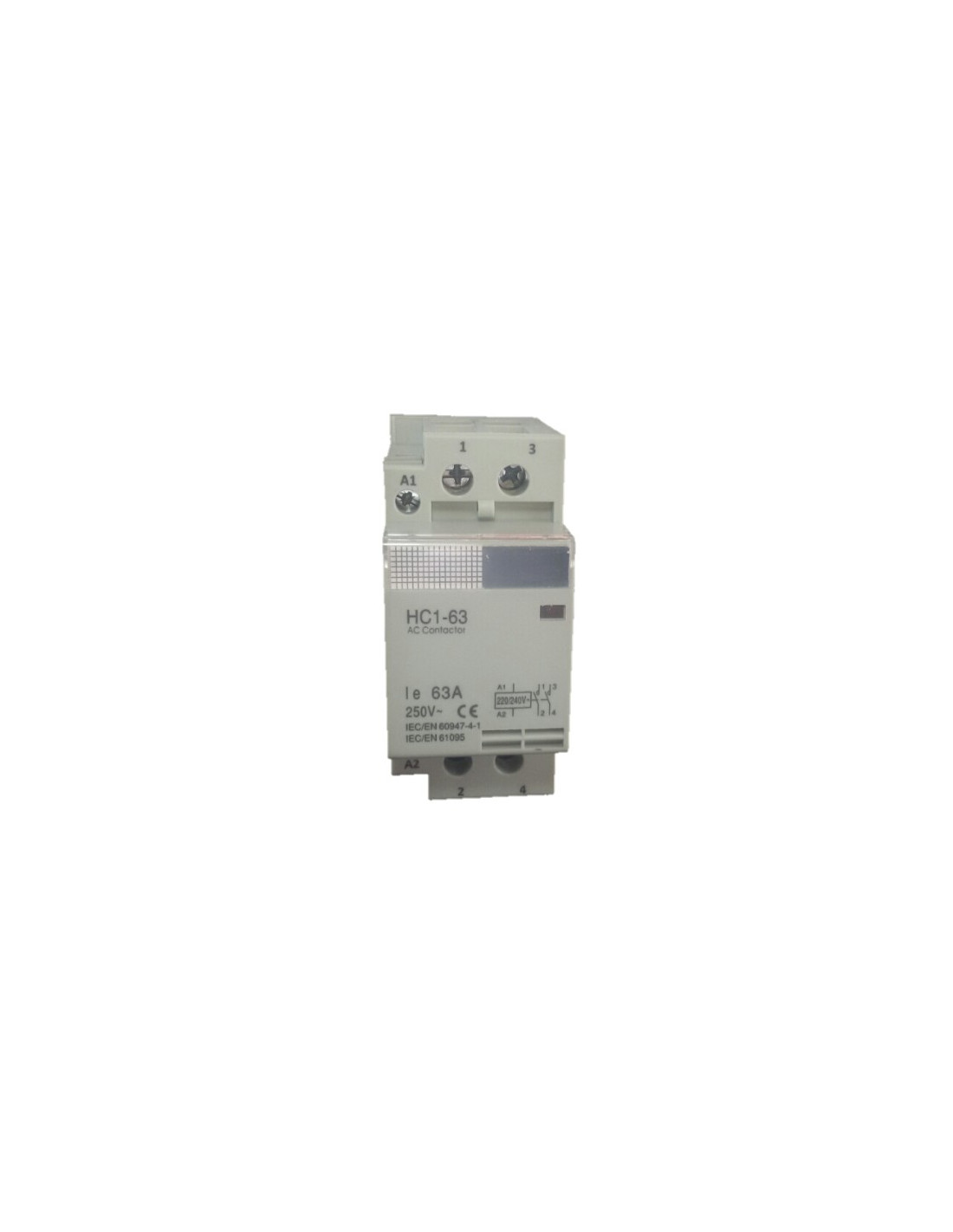

Modular Contactor 2 Polos

Reference HC1-63A 2P

Disponible

€17.88

VAT included

Poles

2 Poles

Intensity

25 amp
40 amp
63 amp

Description
Product Details

Modular contactors for residential and tertiary use applications. Command of air conditioning systems, heating and lighting mainly (category of AC1-AC7A employment). For DIN rail mounting.

Employment tension: 220-240 VAC
Intensity: 25 A40 A
Dimensions: 18 mm36 mm
Mounting: DIN rail
Certification: GB2099, IEC 60844-1
Control voltage: 220-240 VAC
Frequency: 50-60 Hz
Power: 5,4 Kw (AC1-AC7a) 1,2 Kw (AC3-AC7b)8,4 Kw (AC1-AC7a) 2,4 Kw (AC3-AC7b)
Pylon: 2 poles
