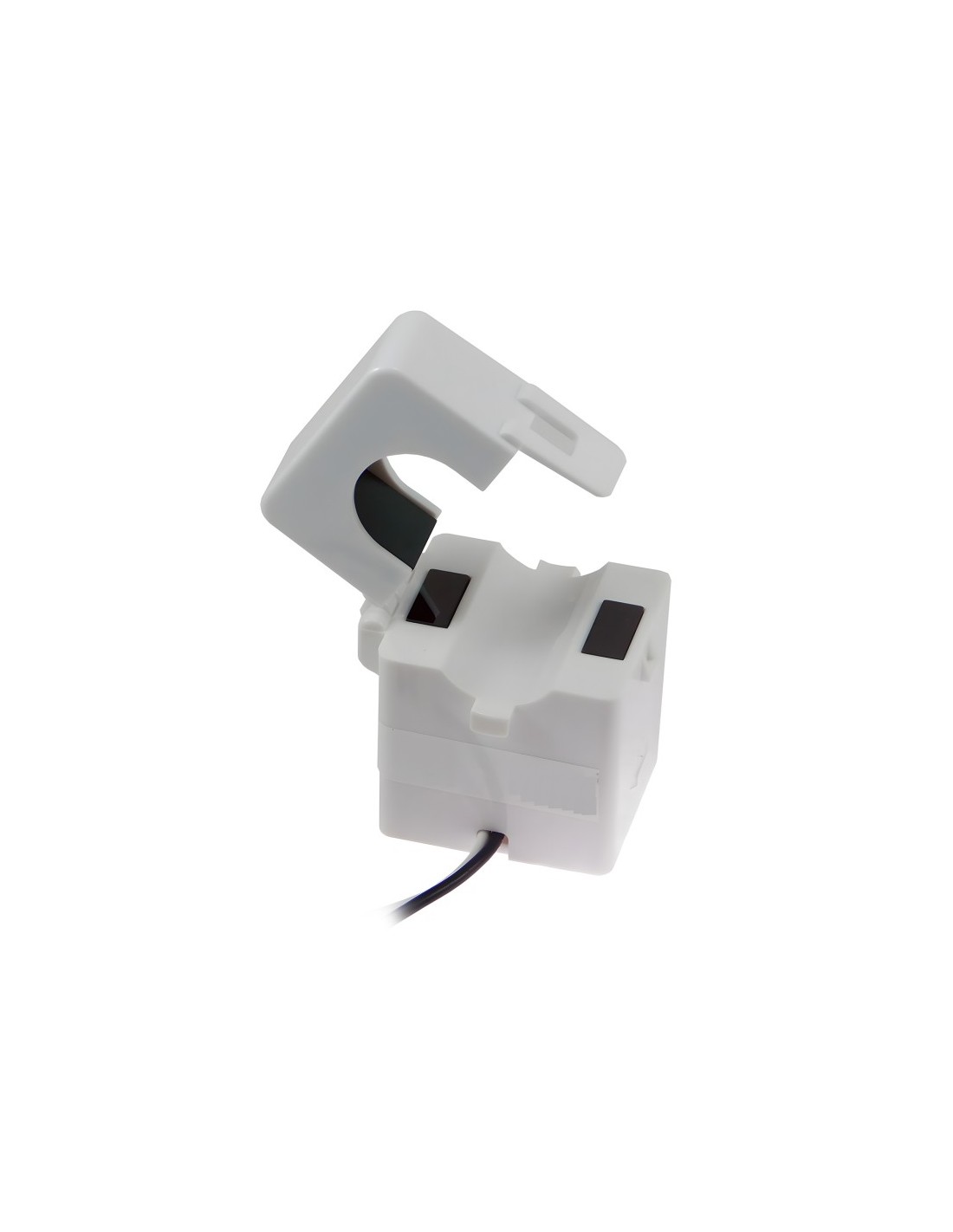

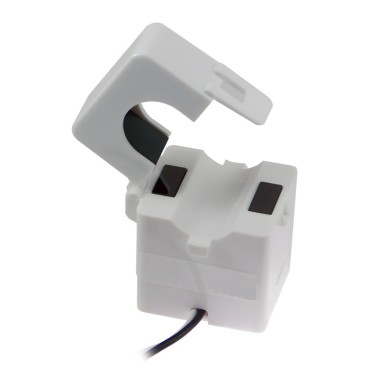

Current transformer 100 / 33,33

- Nominal primary current: 5-400 a ca
- Nominal secondary voltage: 0.333 V CA
- Frequency range: 50-400 Hz
- Operating temperature: -15 ° C to 50 ° C
- Insulation resistance: 100 MΩ at 500 V DC
- Dielectric Rigidity: 2500 V CA / min
- Case material: Nailon, Resin 94-V0
- Highest voltage for UM equipment (RMS): ≤600 V CA
- Meet Rohs
- Approved by ETL
- Cables: 240 mm (0.8 m), UL1015, twisted pair, 0.34 mm² (22 AWG), the length can be customized

Performance (CTSA016)

- Relationship: 1000: 1, 2000: 1, 2500: 1, 3000: 1
- Nominal entrance: 75, 100, 150
- Precision class: 0.5, 1.0
- Phase linearity error: ≤30 '
- Frequency (Hz): 50 to 1 kHz
-
