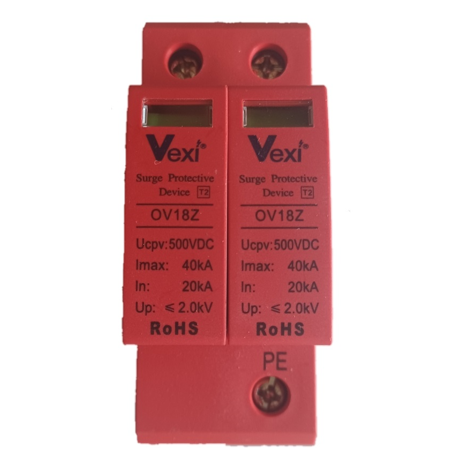

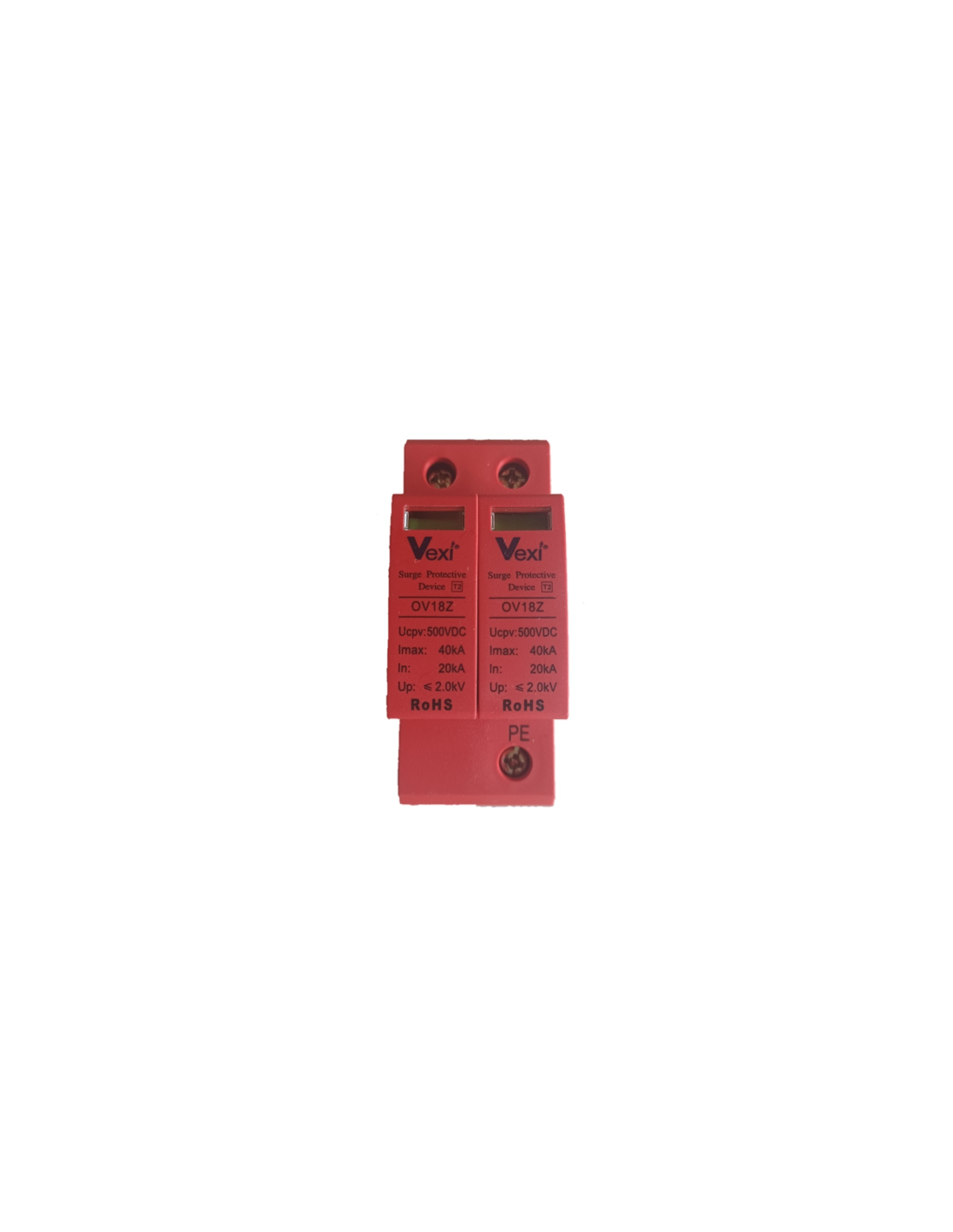

Overvoltage limiter 500V DC

Name: Overvoltage limiter 500V DC
Brand: Transworld 2000
SKU: OV18Z-500VDC
Price: 20.36 EUR
Availability: OutOfStock

Reference OV18Z-500VDC

Agotado

€20.36

VAT included

Transitory overvoltage limiter 500 VDC.

Description
Product Details

Limator Transitory overvoltage for direct current.

Protection of photovoltaic feeding networks against transient surge of atmospheric origin.

Technical characteristics:

- Nominal employment voltage: 500 VDC

- Maximum discharge current: 40 kA.

- Nominal discharge current (15 impulses 8/20 μs): 20 kA. Type 2

- UP protection level: 3 kV.

- Dimensions: 2 modules of 18 mm.
