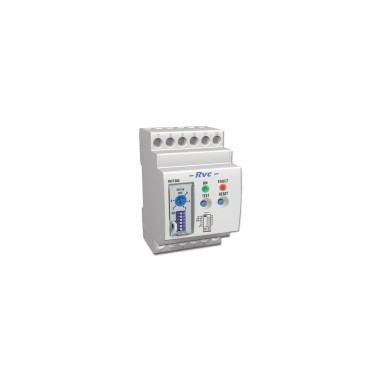

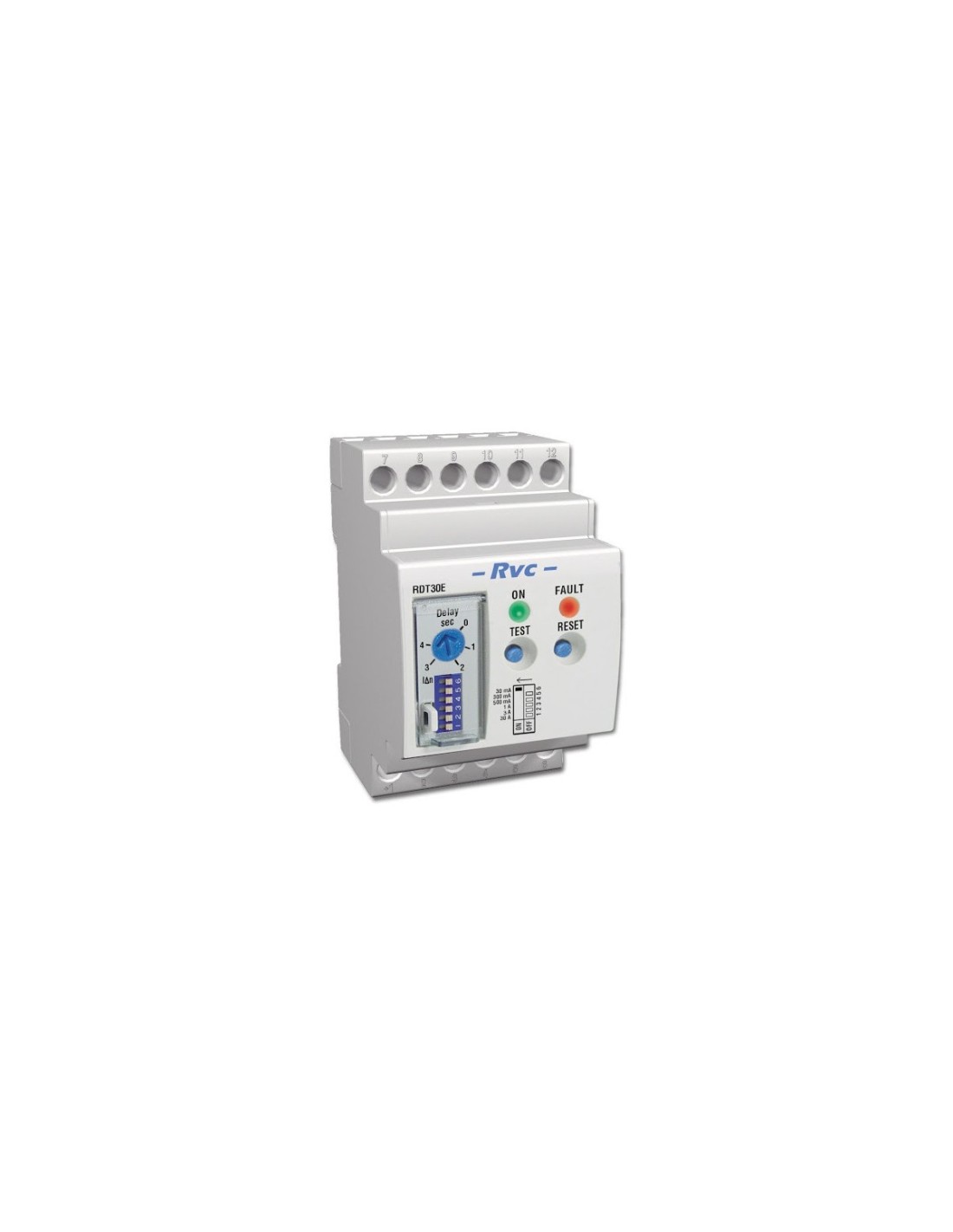

Programmable differential relay

- Employment tension: 230Vac

- Maximum consumption: 1.5 W

- Class: A

- Adjusting the sensitivity; 30ma - 300mA - 500mA-1A- 3A- 30A

- Delay time adjustment: 0 - 1 - 2 - 3 - 4 SG.

- Output relay: 1 NANC, 10A, 250 V

- Use temperature: -10 ° C ÷ +55 ° C

- Insulation test: 2.5 kV for 1 minute

- Degree of protection: IP 20

- Dimensions: 3 DIN modules

- Test (Button): Verification of the operation of the device

- Reset Signals: Reset the Anomaly

- Signaling: Fault (red LED): State of intervention, exceeding the threshold after the delay time

                           On (Green LED): Device fed correctly

.
