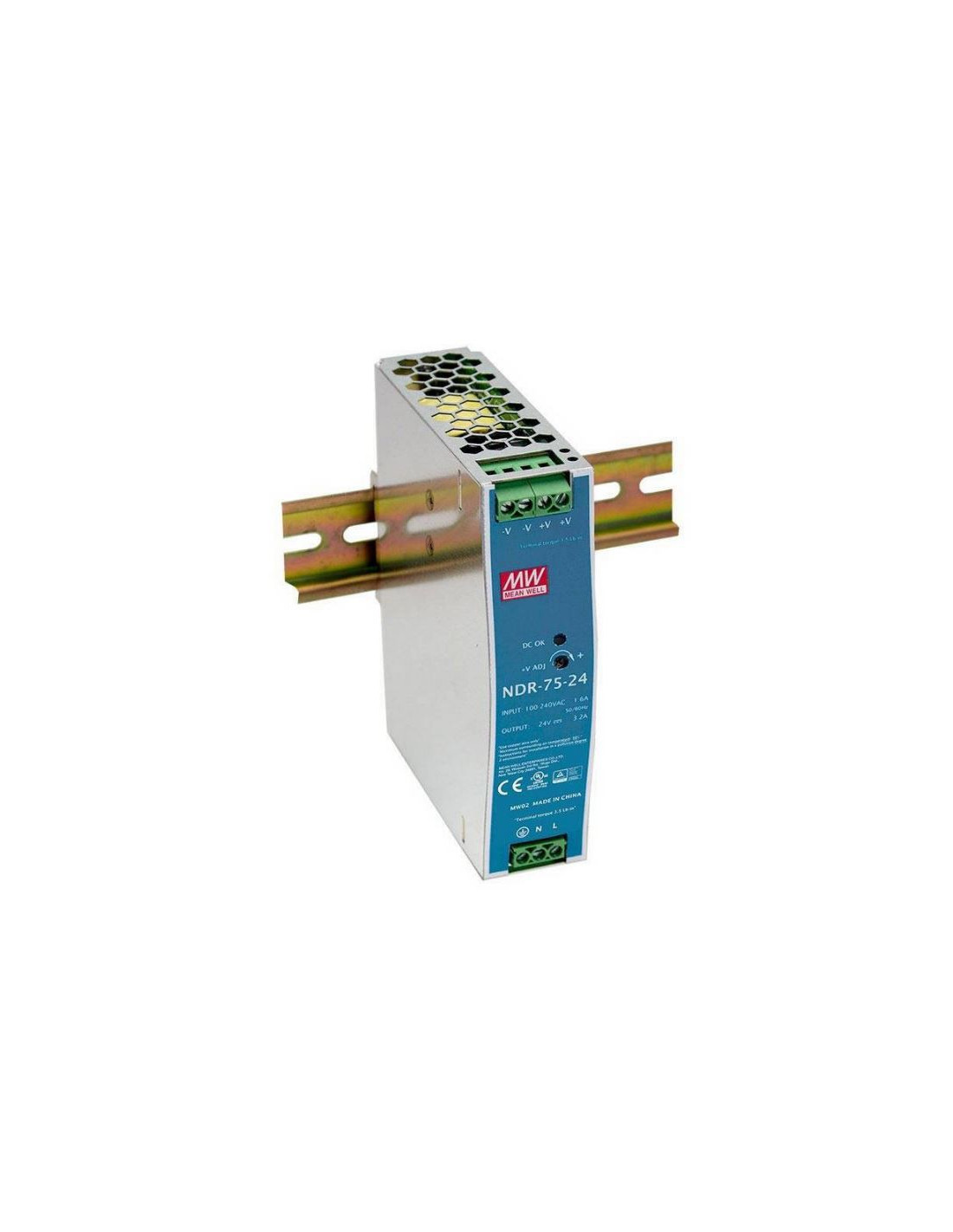

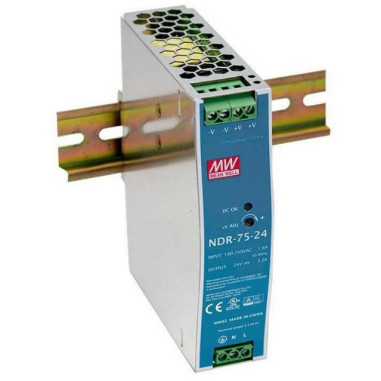

24VCC 75W 3,2A power supply

Switched power supply.

Format for mounting on DIN rail, compact size.

Universal entry range 90-264vca 47-63hz.

Output voltage 24vcc. (Adjustable with 24-28VCC potentiometer).

Output intensity: 3,2a.

Power: 76,8w.

Efficiency: 88%.

Insulation Entrance-output 3000vca.

Cuddling 120mvp-page.

Working temperature: -20 until +70C. of room temperature. See the technical sheet to see drift curves.

Dimensions (wide x high x background): 32 x 125.2 x 102mm.

3 years warranty.

Manufacturer: Meanwell.

Certificates: CE, EAC, RCM, TUV, UKCA and UL.

With wide single-phase input range they have a compact size, with width between 32-85.5mm, for installation in DIN TS-35 / 7.5 or 15 rail.

Comply with the regulations of Emissions conducted in55022 Class B.
