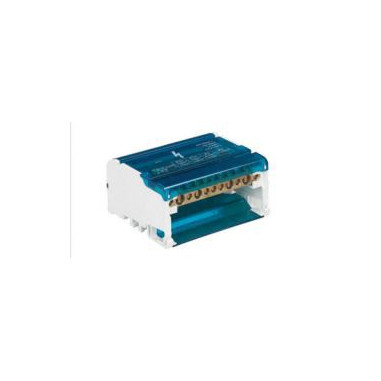

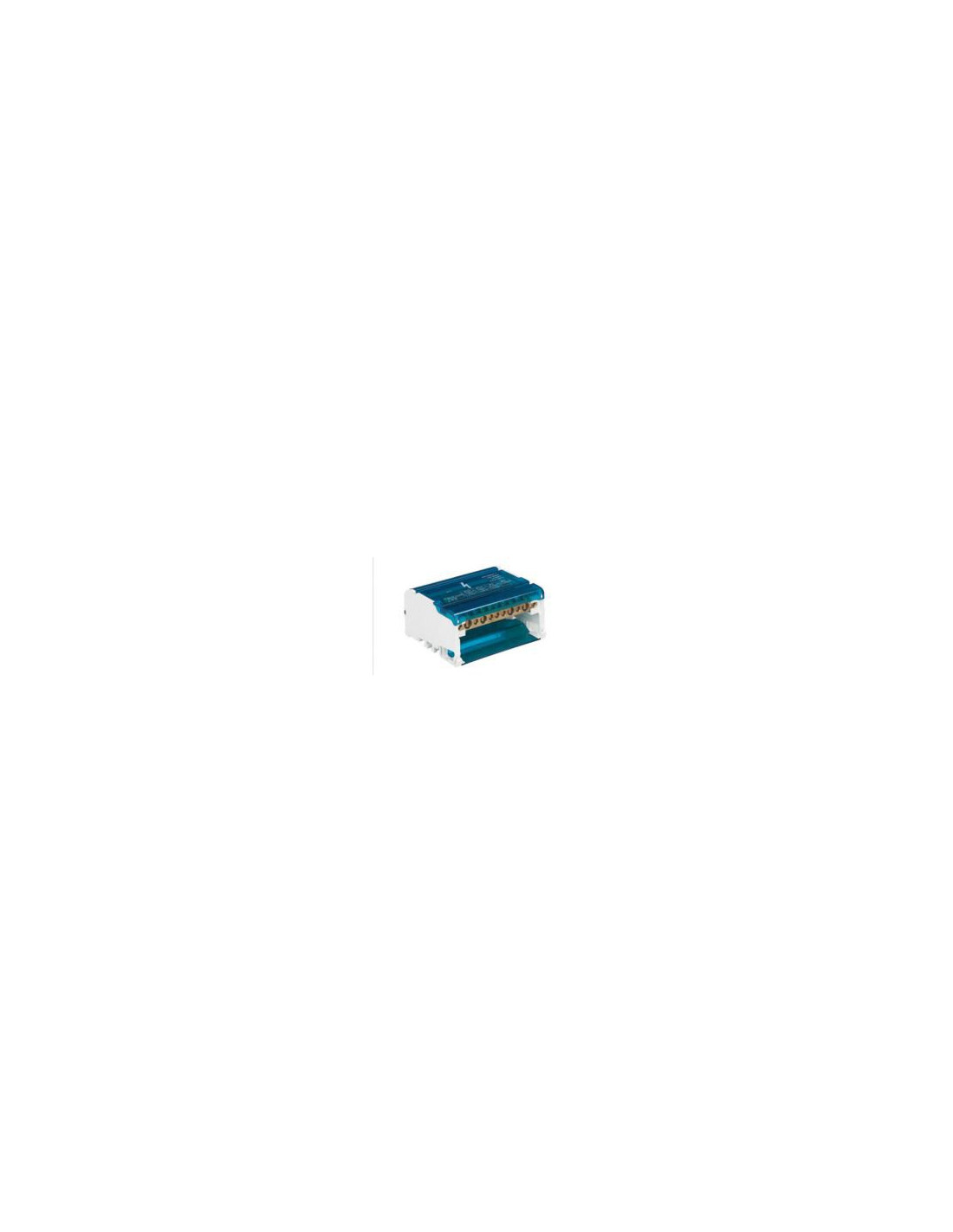

Three-phase phase dealer 11 outputs

Built on self-extinguishing insulating material capable of supporting 960ºC.

Fixing in DIN rail or by two screws

Number of terminals per phase: 11 (2x9mm + 2x7.5 mm + 7x5.5 mm in diameter).

Cable sections: For 9 mm terminals: 10 to 16 mm Contempment, 10 to 35 mm without terminal for terminals of 7.5 mm: from 6 to 16 mm with terminal. For terminals of 5.5 mm: 1.5 to 6 mm with terminal, 2.5 to 6 without terminal.

Maximum use of use: 500 V.

Employment current (ITH): 125A-40ºC

Maximum corticing intensity (IPK): 20KA

Dimensions: 100x85x50 mm (LXWXH).

Approval: EN60947-1, EC.
